Descrizione
NEW!
Graded Hammer Compact (GHC) Keyboard Action
CFX Premium Grand Piano Voice
VRM (Virtual Resonance Modeling) Lite
Half-Damper Pedal Control
Bluetooth Audio
USB to HOST (MIDI & Audio)
Split Mode
Dual Mode
192-note Polyphony
| Size/Weight | ||
|---|---|---|

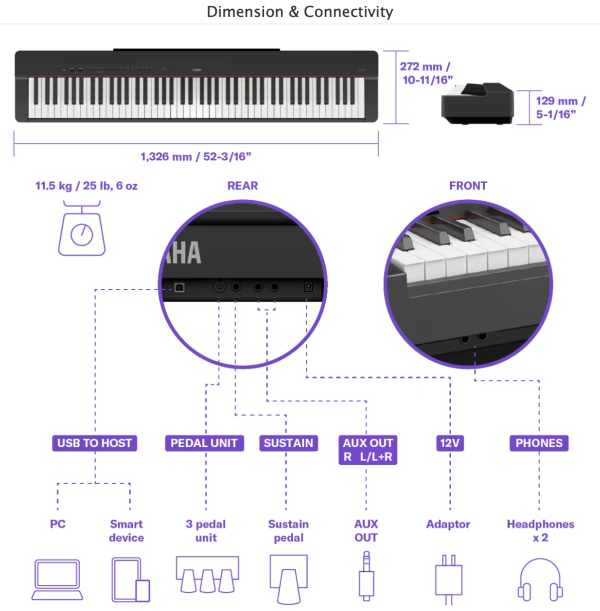

| Dimensions | Width | 1,326 mm [52-3/16"] |
| Height | 129 mm [5-1/16"] (with music rest: 327 mm [12-7/8"]) | |
| Depth | 272 mm [10-11/16"] (with music rest: 362 mm [14-1/4"]) | |
| Weight | Weight | 11.5 kg [25 lb, 6 oz] |
| Dimensions (with optional stand) | Width | 1,326 mm [52-3/16"] |
| Height | 744 mm [29-5/16"] (with music rest: 942 mm [37-1/16"]) | |
| Depth | 318 mm [12-1/2"] (with music rest: 362 mm [14-1/4"]) | |
| Dimensions of Packing Box | W x H x D | 1,424 mm x 362 mm x 233 mm [56-1/16" x 14-1/4" x 9-3/16"] |
| Control Interface | ||
| Keyboard | Number of Keys | 88 |
| Type | GHC keyboard with matte black keytops | |
| Touch Sensitivity | Hard/Medium/Soft/Fixed | |
| Panel | Language | English |
| Voices | ||
| Tone Generator | Piano Sound | Yamaha CFX |
| Key-off Samples | Yes | |
| Virtual Resonance Modeling (VRM) | Yes (VRM Lite) | |
| Damper Resonance | – | |
| Polyphony (max.) | 192 | |
| Preset | Number of Voices | 24 |
| Effects | ||
| Types | Reverb | 4 types |
| Wall EQ | Yes | |
| Intelligent Acoustic Control (IAC) | Yes | |
| Stereophonic Optimizer | Yes | |
| Sound Boost | 2 types | |
| Functions | Dual/Layers | Yes |
| Split | Yes | |
| Duo | Yes | |
| Songs | ||
| Preset | Number of Preset Songs | 21 Voice Demo Songs + 50 Classics |
| MIDI Recording | Number of Songs | 1 |
| Number of Tracks | 2 | |
| Data Capacity | Approx. 100 KB/Song (approx. 11,000 notes) | |
| Functions | ||
| Overall Controls | Metronome | Yes |
| Tempo Range | 5 – 280 | |
| Transpose | -6 – 0 – + 6 | |
| Tuning | 414.8 – 440.0 – 466.8 Hz (approx. 0.2 Hz increments) | |
| USB Audio Interface | 44.1 kHz, 24 bit, stereo | |
| Rhythm | Number of Rhythms | 20 |
| Bluetooth | Audio (Varies by country) | |
| Storage and Connectivity | ||
| Connectivity | Headphones | Standard stereo phone jack (x 2) |
| AUX OUT | [L/L+R] [R] | |
| USB TO HOST | Yes | |
| DC IN | 12 V | |
| Sustain Pedal | Yes | |
| Pedal Unit | Yes | |
| Amplifiers and Speakers | ||
| Amplifiers | 7 W x 2 | |
| Speakers | (Oval (12 cm x 8 cm) + 5 cm) x 2 | |
| Power Supply | ||
| AC Adaptor | PA-150B or an equivalent recommended by Yamaha (Output: DC 12 V, 1.5 A) | |
| Power Consumption | 9 W (When using PA-150B AC adaptor) | |
| Accessories | ||
| Included Accessories | Owner’s Manual, Online Member Product Registration, Music rest, Footswitch, AC adaptor* (PA-150B or an equivalent recommended by Yamaha) *Varies by area | |
| Separately Sold Accessories | Headphones (HPH-150, HPH-100, HPH-50), Keyboard stand (L-200), Pedal unit (LP-1), Foot pedal (FC3A), Footswitch (FC4A, FC5), Keyboard bag (SC-KB851), AC adaptor* (PA-150B or an equivalent recommended by Yamaha), Wireless MIDI adaptor (UD-BT01) *Varies by area |
